Product Families / V-BUCKLE / 25 swivel mount+pull tab

V-BUCKLE

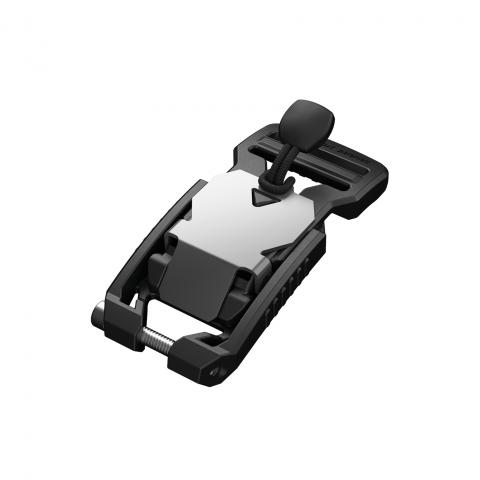

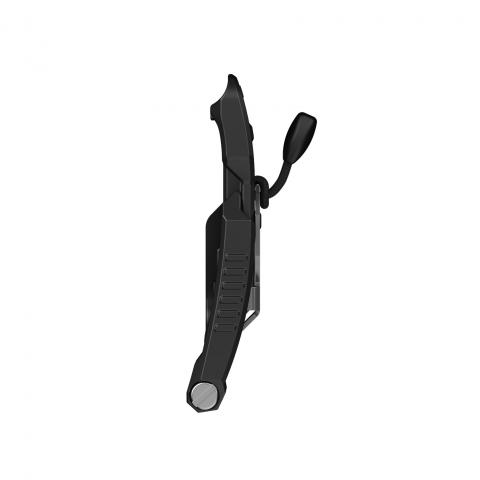

25 swivel mount+pull tab
Article No
FV-11209-000002(BLK)
Sector
professionals, footwear, children, apparel, transportation, outdoor, sports, bags, medical
Material
PA66GF30, stainless steel (glossy)
Colour
black
Webbing width
25 mm
Weight
ca. 27 g
Dimensions (L x W x H)
72,8 x 34,2 x 16,0 mm
Static breaking load N
686 N
Static breaking load KG
70 kg
Opening mechanisms
lift
Assembly
strap, screwing, ladderlock
Order Samples
DESCRIPTION

The V-BUCKLEswivel mount is based on the design of the regular V-BUCKLE 25. However, it is attached with webbing on one side of the fastener and with a screw on the other. All V-buckle female parts fit all V-BUCKLE male parts.



APPLICATION AREAS

The V-BUCKLE product family can be used for versatile products. Possibilities include application areas such as footwear, apparel, bags, sports & outdoor gear and carrying systems.



FITTING

This V-BUCKLE is attached to the relevant strap on one side. The other side features a swivel mount and allows the attachment to any other objects with a screw.


Can be used for applications with specific safety requirements.

Not for use on dog leashes. Use for fastening dog collars only after successful suitability testing by the manufacturer.

Available with or without pull tab, hole dimensions: 4 x 2 mm.

All V-BUCKLE female parts are compatible with all V-BUCKLE male parts.

CUSTOMIZATION

The V-BUCKLE is available in different colours and can be customized with your logo. Options include printed, lasered and punched logos.
Visit our customization page for additional information.
